Wild Homebrew Console Looks Straight Out Of Fallout

We may earn a commission from links on this page.

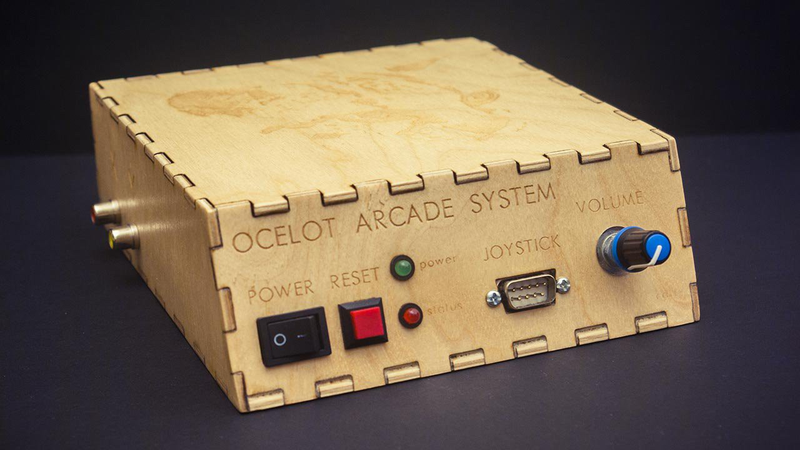

The Ocelot is one of the most bizarre homemade consoles I’ve ever seen. It looks more like a piece of scientific equipment than something you’d play video games on. In all honesty there’s no reason for it to exist at all, but thanks to its determined builder, console modder Matthew Carr, it does.

The machine, which Gamasutra recently discovered, is unique for utilizing an oscilloscope, a type of electronic test instrument that can measure voltages and display them on a CRT screen. While these devices are traditionally used for things like diagnosing malfunctioning equipment and form the basis for medical equipment like electrocardiogram (ECG) machines that measure heart-rate, the technology can really be adapted for just about anything where an electrical current is involved. Carr decided to use it to play games


Currently there are two games that the Ocelot works with: Star Lynx, a scaled-down version of Star Fox where you pilot a spaceship and combat mechanical insects, and Mattsteroids, Carr’s recreation of Asteroids. Both games look like old-fashioned radar screens haunted by retro ghosts but run surprisingly smooth due to the high refresh-rate of the vector graphics.


How they work at all gets a bit more technical. Basically, a dsPIC33 microcontroller chip does the processing for the games and creates waveforms that are then rendered on a CRT display by the oscilloscope.

Here’s Carr explaining it in his own words:

“When a frame is started, games are able to send requests to draw lines or characters to the oscilloscope screen. These are simplified and stored in a buffer of instructions to move the cursor within a virtual 2D plane. An DMA-triggered interrupt handler rapidly reads instructions from this buffer and translates them to DAC-compatible SPI instructions to alter the voltages at the X‑Y ports, which are then read by the oscilloscope to produce the graphics.”

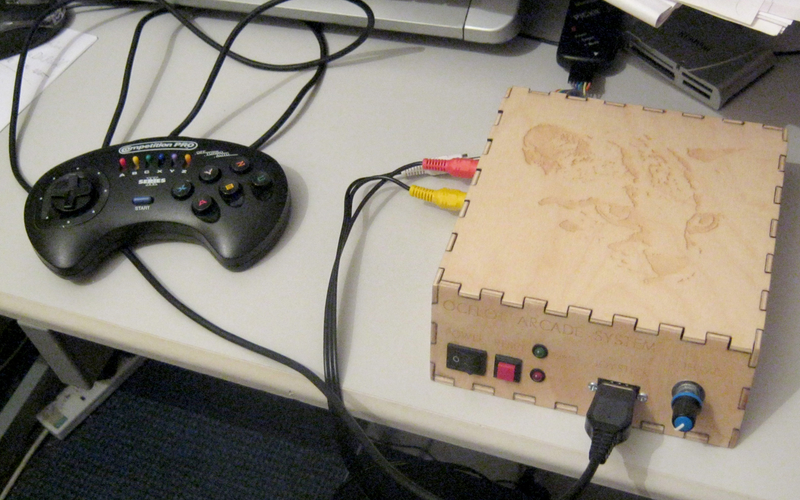

Meanwhile, the sounds and music come from electrical currents passed through an amplifier, which are stored and played back as part of the Ocelot’s programing. In addition, Carr has made the Ocelot arcade machine compatible with a handful of old controllers. Instead of spinning knobs, the Ocelot also supports an Amiga joystick, Atari joystick, or Master System (read: the Sega Genesis’ older sibling) gamepad.


It’s an absurd creation that would be right at home in the Fallout universe: an ambitious but anachronistic mashup of old and older technologies that feels like playing classic games on a submarine. In the end it’s an interesting reminder that you can play games on just about any machine linked to a computer (like a graphing calculator) if you’re willing to work hard enough.

There’s currently only one Ocelot in existence, although Carr has some handy guides for how you can go about making your own.
