If you've been a gamer for at least a decade, then you will recognize Max Payne as the PC third-person shooter of the early 2000s. Notable for its film noir style and use of the bullet time effect (The Matrix), Max Payne's character went on to surpass anyone's expectations with several console ports, a sequel, and a feature film adaptation in 2008.
Shortly after that, Max Payne 3 was announced and it's been in the works at Rockstar Studios since. The original game was developed by finnish developer Remedy Entertainment and published by the now defunct 3D Realms. Max Payne 3 promises exciting gameplay and impressive graphics, marking the return of bullet time in action sequences, while retaining the shoot-dodge mechanic from previous titles.
On the technology side of things, Rockstar talked earlier about its ability to blend physics and animation. For example, when Max takes a dive to surprise his enemies he does so appropriately according to his surroundings. This is done through the use of the advanced Euphoria dynamic animation engine. However, the game itself is built on the RAGE game engine, so in a sense there are two engines used in the game on top of each other.
The RAGE engine has been upgraded for Max Payne 3 with support for DirectX 11 and stereoscopic 3D rendering on the PC. The added support for DX11 effects has been one of the reasons for our anticipation of this title and why we are bringing you this performance article.
It's been hinted that Max Payne 3 will make the most of current high-end PCs, with DirectX 11 tessellation compatibility and "advanced graphics options" available to PC players. So with that in mind let's take a look at the test setup and then get into the results. Make sure you check out our visual tour comparing DX9 through DX11 graphics.
In case you lost count, we'll be testing 25 DirectX 11 graphics card configurations from AMD and Nvidia across all price ranges. The latest official drivers were used for every card. We installed an Intel Core i7-3960X in our test bed to remove any CPU bottlenecks that could influence high-end GPU scores.
We used Fraps to measure frame rates during 90 seconds of gameplay footage from Max Payne 3's fifth single-player level: "Alive If Not Exactly Well". The test begins at the start of the mission where you take a power boat ride down a river before going ashore and starting the mission. The first 90 seconds of footage is the same every single time as it is an in-game cut scene and we chose this scene because it is very demanding.
Test System Specs:
We tested Max Payne 3 at three common desktop display resolutions: 1680x1050, 1920x1200 and 2560x1600, using normal and very high quality settings. Both modes were tested in the DirectX 11 mode with vsync and MSAA disabled while ambient occlusion was set to SSAO. The very high settings used 984MB of video memory at 1920x1200 while the normal settings used 331MB at the same resolution.

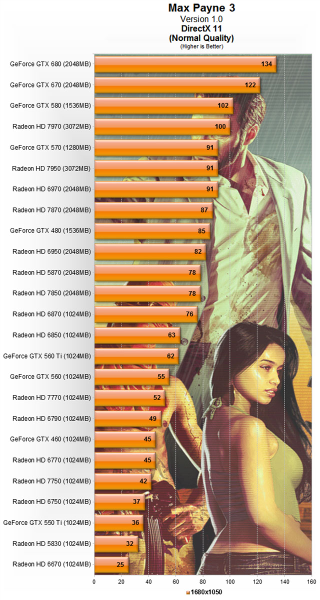

Achieving our target frame rate of 60fps wasn't as easy at 1680x1050 as we were expecting. This required the use of either the GeForce GTX 560 Ti or Radeon HD 6850 which averaged 62fps and 63fps respectively. Falling just shy of the desired 60fps target was the GeForce GTX 560 with 55fps and the Radeon HD 7770 with 52fps. Graphics cards such as the Radeon HD 6790 and GeForce GTX 460 failed to average 50fps.
Moving up past the GeForce GTX 560 Ti and Radeon HD 6850 we saw quite a large bump in performance with the Radeon HD 5870, 6870 and 7850 all averaging well over 70fps. The Radeon HD 6950 and GeForce GTX 480 averaged over 80fps and anything faster than that was overkill for these quality settings.

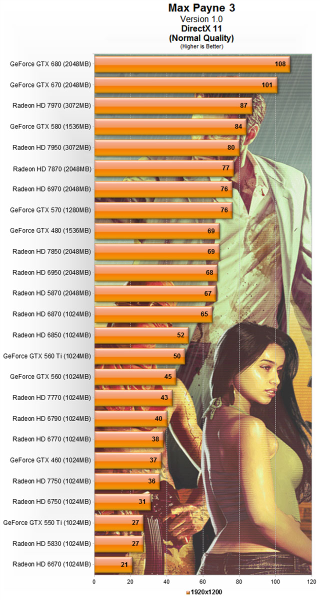

At 1920x1200 it takes the Radeon HD 6870 to exceed an average of 60fps. This card was a mere 2-3fps slower than the 5870 and 6950. The new Radeon HD 7850 averaged 69fps matching the old GeForce GTX 480. Meanwhile the GeForce GTX 570 and Radeon HD 6970 both scored 76fps, while the new 7950 was slightly faster with 77fps.
Towards the top of the food chain we have the GeForce GTX 580 with 84fps and the Radeon HD 7970 with 87fps. The GeForce GTX 670 was much faster with 101fps and the GTX 680 with 108fps.
Falling short of the 60fps target was the Radeon HD 6850 with 52fps and the GeForce GTX 560 Ti with 50fps. The GeForce GTX 560 (45fps) and the Radeon HD 7770 (43fps) provided playable performance at this resolution but there were moments of lag.
Republished with permission from:
Steven Walton is a writer at TechSpot. TechSpot is a computer technology publication serving PC enthusiasts, gamers and IT pros since 1998.
